- most popular industrial standard -offers 2" adjustability for most efficient height usage.
Standard widths to 64" and heights to 300" to cover most storage applications.

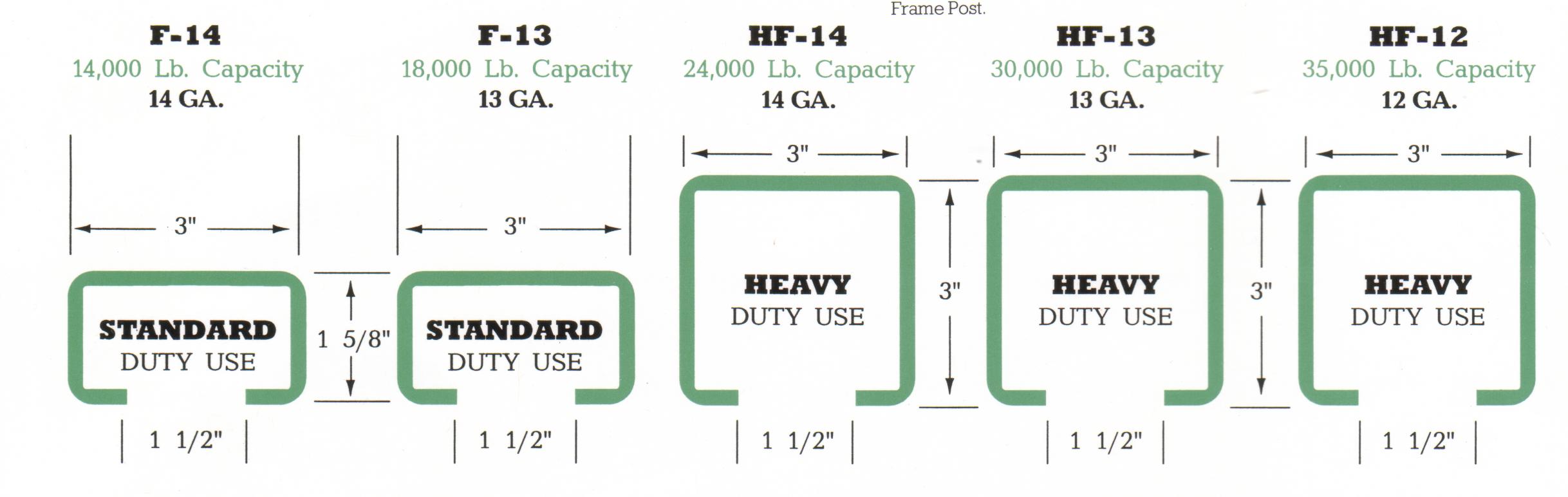

Height tensile steel columns and heavy channel bracing soundly welded together result in strong and reliable upright truss.
Boltless design insures ease of assembly and adjustment.
The finish is iron phosphated and is coated with powder coating to insure protection of rack components. Standard colors: dura green
- frames, safety orange - beams.
Weight capacities to 35,000 Lbs. Capacities are based on 54" beam spacing.
All rack components designed in accordance with requirements of the Rack Manufacturers Institute and conform to AISC and light gage cold formed standards.

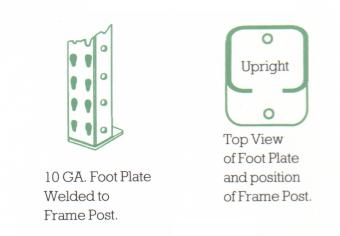

All frames have foot plates welded to the frame posts.
Each foot plate is 4-1/2" x 3" x 10 GA. and has two (2) 9/16' holes for securing frames to the floor.
